RB-2460 Hydraulic Speed Regulator for Speed Control

Name: RB2460 Hydraulic Speed Regulator for Speed Control
Brand: DSSD
Price: 38 USD

Best RB-2460 Hydraulic Speed Regulator for Speed Control wholesale

Brand Name : DSSD

Model Number : RB-2460

Certification : iso,tuv,ce Certification

Place of Origin : China Deyang City

MOQ : 1

Price : 38

Contact Now

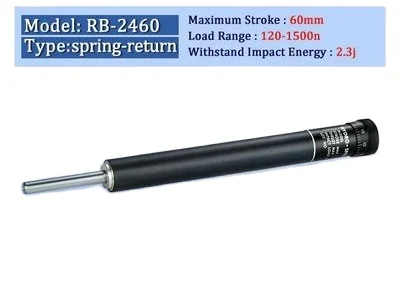

RB-2460 Hydraulic Speed Regulator

Hydraulic speed regulator is a hydraulic feed speed control device which can freely adjust the cutting feed from low speed to high speed. There are two types of return mode: spring return type and air return type, which can be selected according to different uses.
In addition, speed skills also prepared for pipe processing of the in-between hydraulic damper.

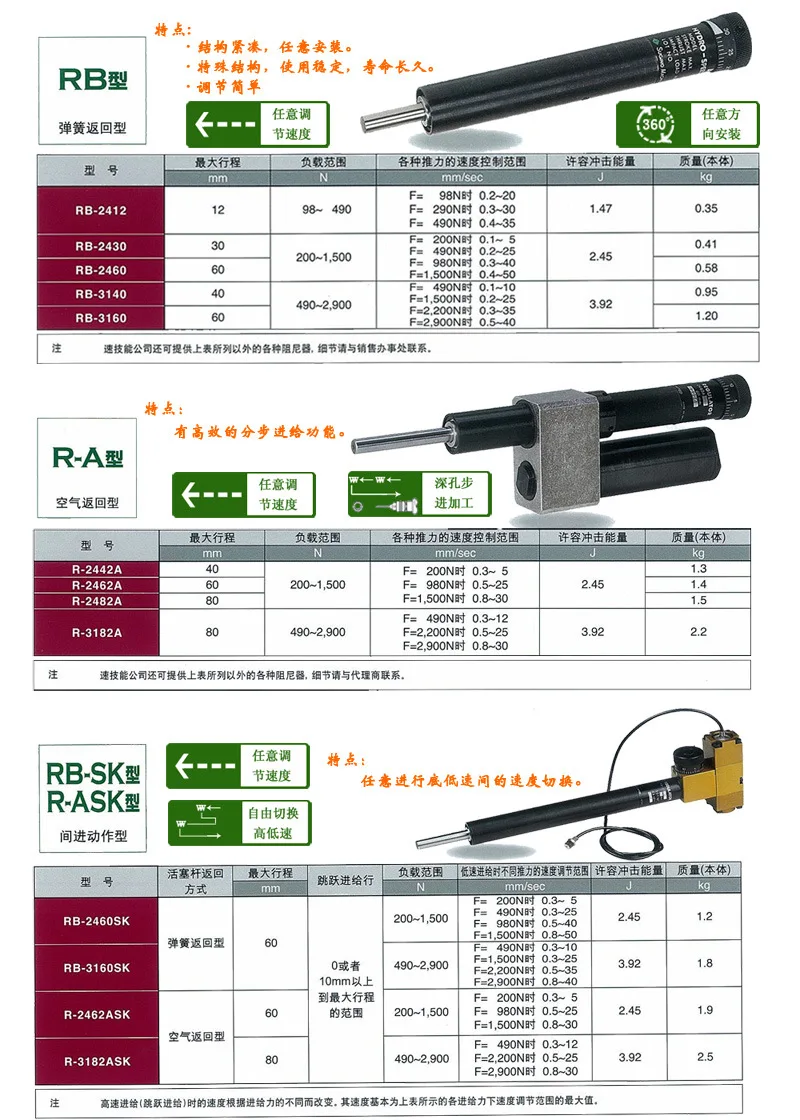

There are different types of Hydraulic Speed Regulator.

RB-2460 Hydraulic Speed Regulator for Speed Control

Type RB-XXXX

Characteristic

1. Compact structure, arbitrary installation direction.
2. Fully enclosed structure without supplementary working oil is adopted. Can maintain long-term stability of the control function.
3. The change of control speed caused by rapid load change is very small. Stable feed speed can be obtained.
4. Feed speed can be easily adjusted by speed adjusting knob.

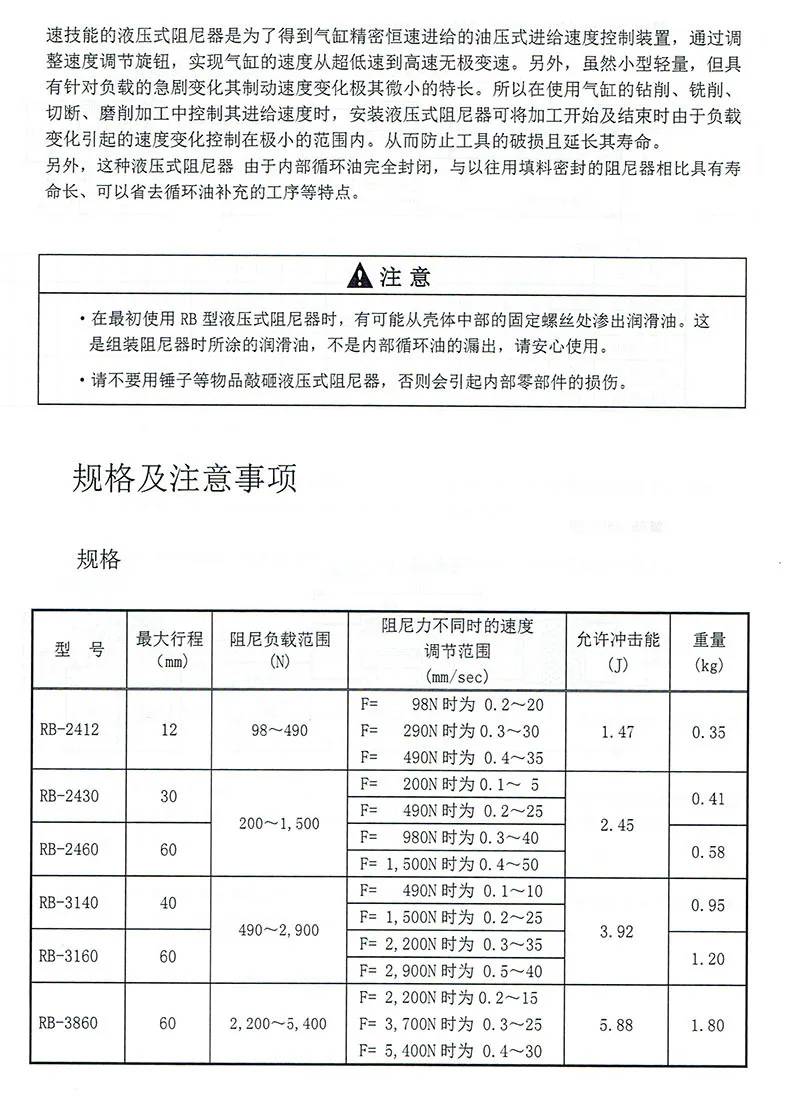

Main Parameters

Item	Stroke Max(mm)	Load Range(N)	Speed Control Range(mm/sec)	Permissible Impact Energy(J)	Weight(kg)
RB-2412	12	98-490	0.2-20(F=98N) 0.3-30(F=290N) 0.4-35(F=490N)	1.47	0.35
RB-2430	30	200-1,500	0.1-5(F=200N) 0.2-25(F=490N) 0.3-40(F=980N) 0.4-50(F=1,500N)	2.45	0.41
RB-2460	60	200-1,500		2.45	0.58
RB-3140	40	490-2,900	0.1-10(F=490N) 0.2-25(F=1,500N) 0.3-35(F=2,200N) 0.5-40(F=2,900N)	3.92	0.95
RB-3160	60	490-2,900		3.92	1.2
RB-3860	60	2,200-5,400	0.2-15(F=2,200N) 0.3-25(F=3,700N) 0.4-30(F=5,400N)	5.88	1.8
